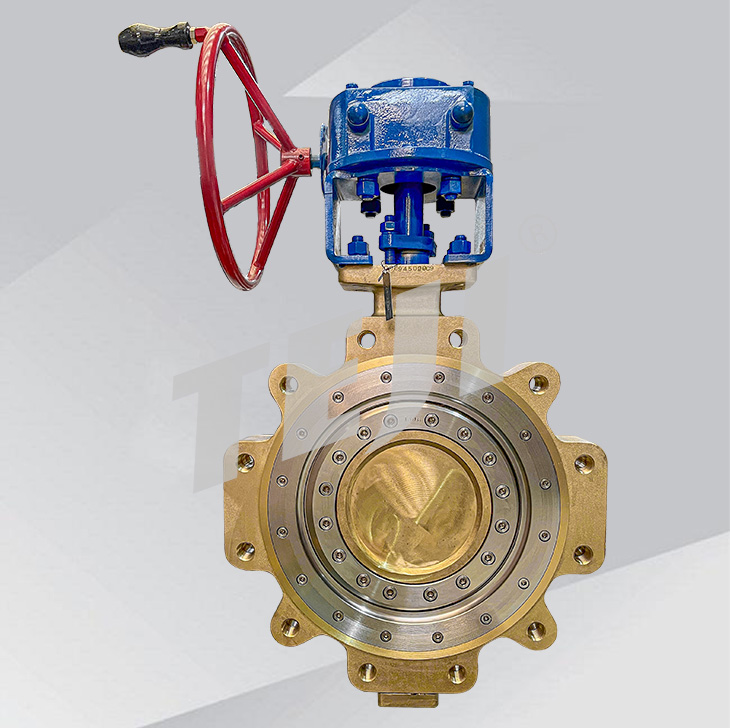

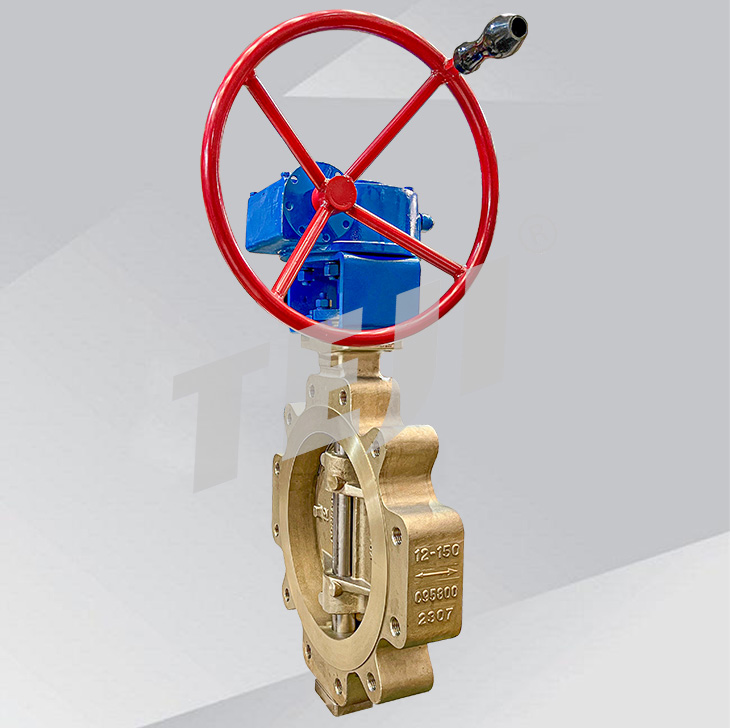

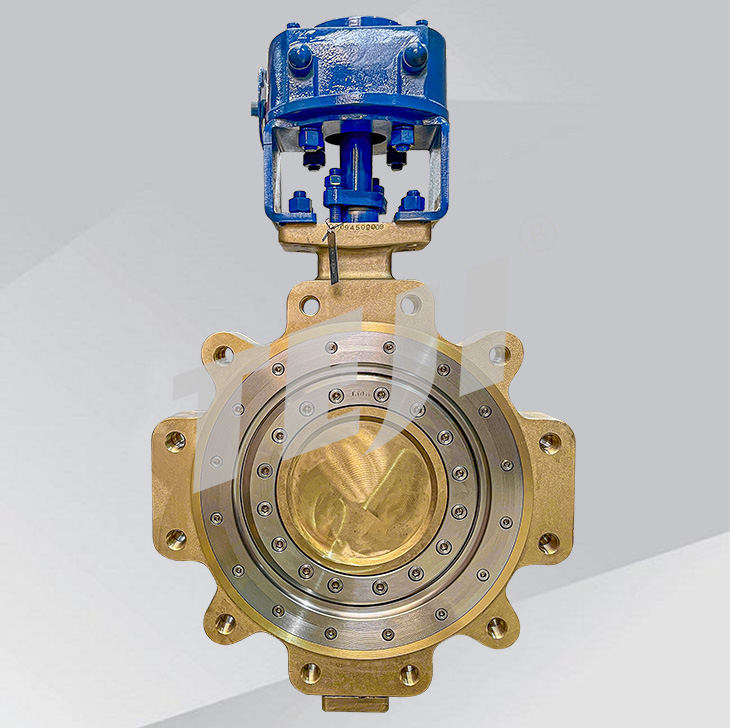

Al-bronze Triple Offset Butterfly Valve
● Size: 2”~48”
● Pressure Rating: Class150~600LB
● Body Materials: C95800, C95400
● Disc Material: C95800, C95400
- category :Triple Offset Butterfly Valve
- Email :teji@teji-valve.com
- Phone :+86-577-67354000
- fax :+86-577-67354001
Al-bronze triple offset butterfly valve is mainly suitable for seawater. It adopts to triple offset soft sealing structure to ensure the tightness of the valve. And it also can reduce the friction loss of the seals.
SPECIFICATION:
● Size: 2”~48”
● Pressure Rating: Class150~600LB
● Body Materials: C95800, C95400
● Disc Material: C95800, C95400
● Stem Material: Monel 400
● Disc Sealing: PTFE
● Lever Material: QT450
● Design & Manufacture: API609, EN593
● Face to Face: ASME B16.10, EN558-1
● Inspect & Test: API 598, EN12266
● Connection Type: Wafer, Lug
● Operation: Lever, Gear
FEATURE:
● Strong Corrosion Resistance
● One-piece Shaft
● Low Emission Packing
● Unidirectional
