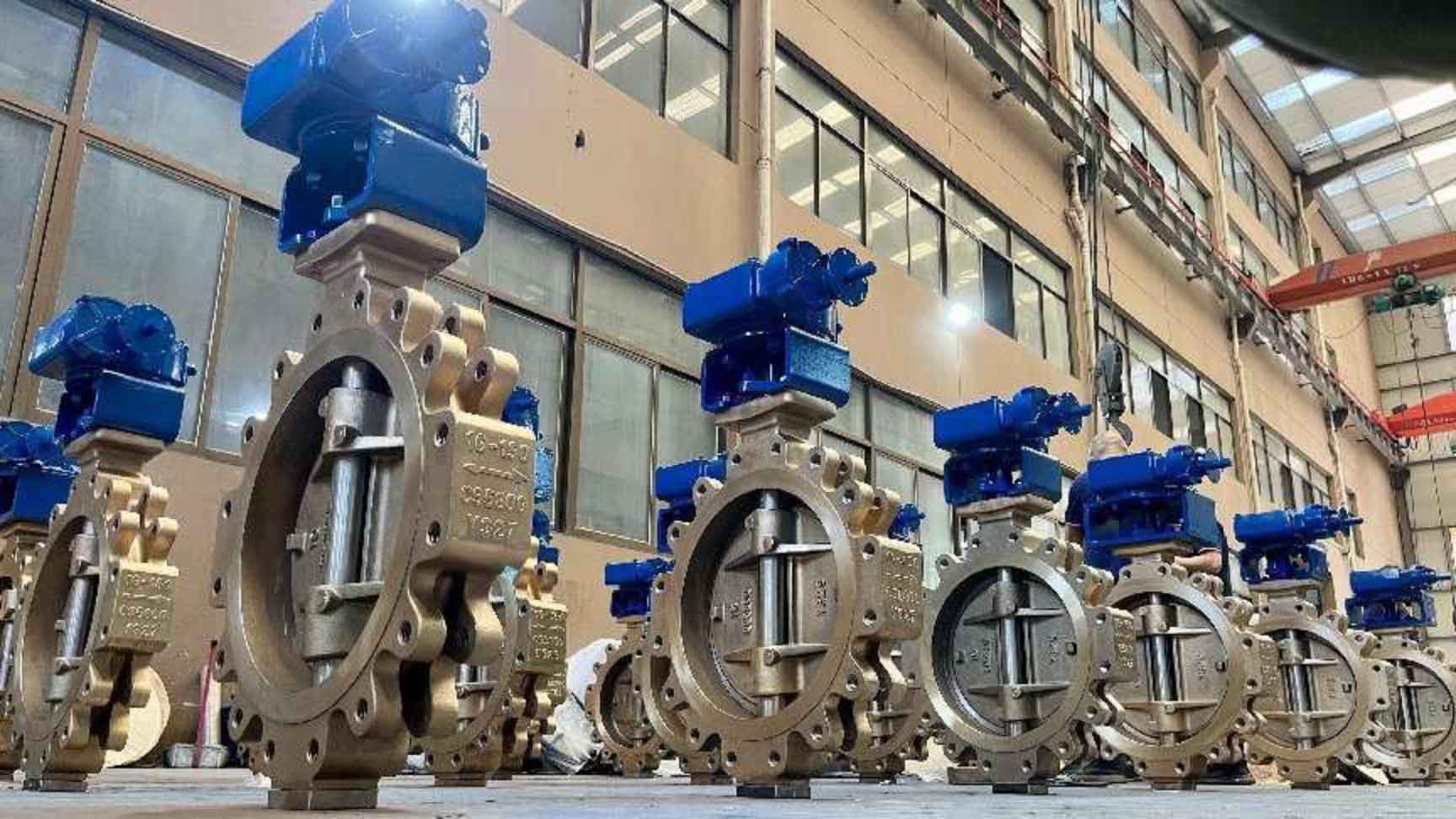

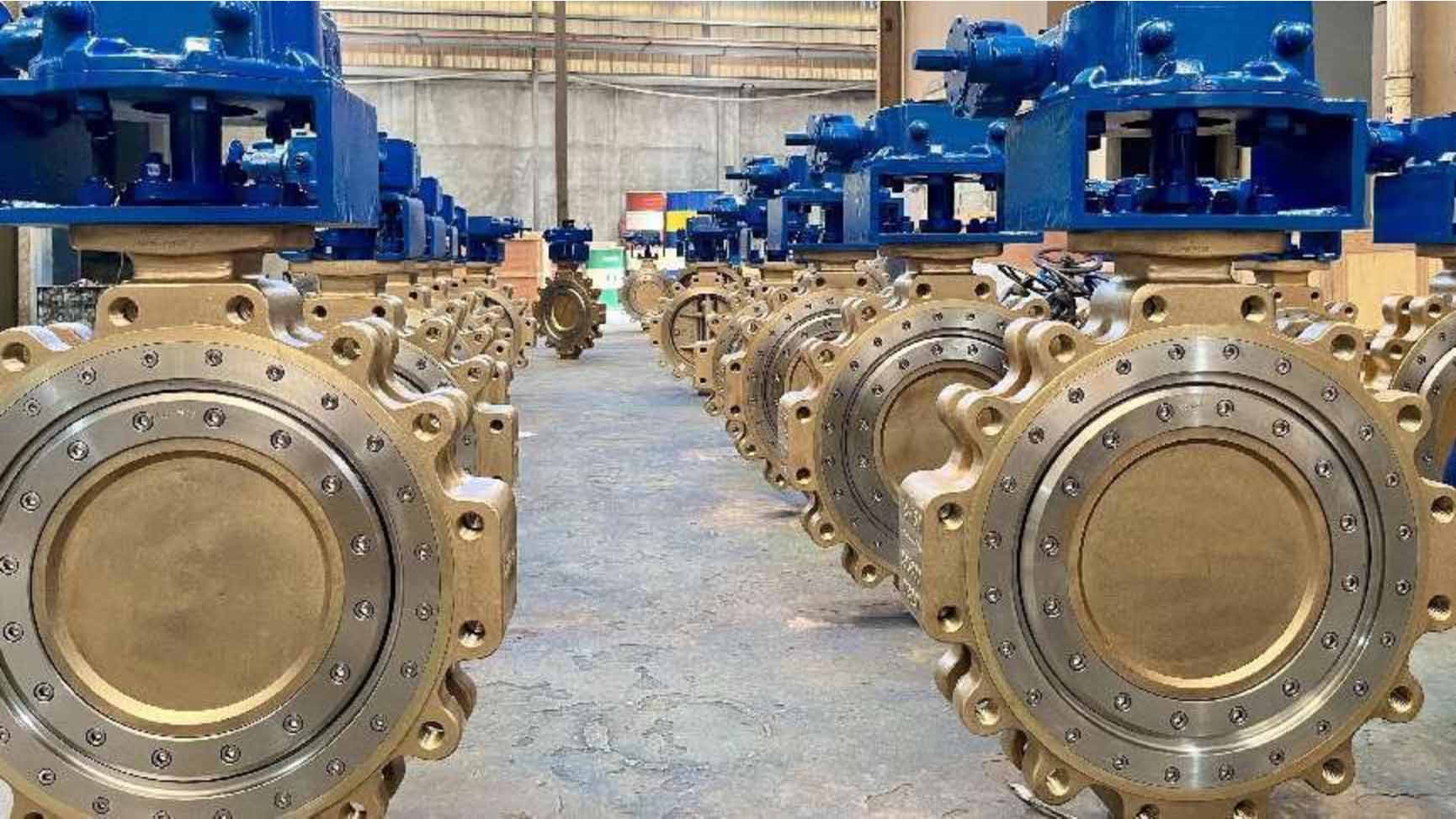

Triple Offset Metal Butterfly Valve
With the rapid development of industrial technology, the requirements for fluid control equipment are very strict. In order to meet the growing needs of customers, we are honored to recommend the product developed and manufactured by our company's professional team - triple offset metal butterfly valve. This product is not only achieved a qualitative leap in performance, but also made bold innovations in design and materials, so that it can meet the needs of current upgrading industrial better.
Size:DN80~DN1800
Pressure:Class150~Class1500
Suitable temperature scope:-196℃ ~500℃
Bidirectional sealing, Satisfy the fugitive emission ISO 15848 Standard.
The three core advantages make the product performance more reliable:
1. Triple offset design:Unique triple construction, so that the valve during the opening and closing, the sealing surface always maintain zero friction. Not only reduce the operating torque greatly, prolongs the service life, but also ensure the sealing performance under various working conditions.
The triple offset butterfly valve is on the basis of double offset, and the center line of the valve cone sealing base is tilted to the center line of the valve body, that is the positive cone seal is changed to the oblique cone seal.
After the triple offset, the sealing section of the butterfly plate is elliptical. The structure makes the minimum pressure angle of the 360° circular sealing surface greater than the friction angle, therefore, the phenomenon of local friction and sticking is eliminated, achieved the sealing surface of the valve plate is separated and contacted at the instant of the switch, reduce the friction torque force greatly when the valve is switched on and off, solve the double offset butterfly valve sealing structure defects, and extend the service life of the valve.
2. Seal ring: F53+STL, Select high-strength metal materials to ensure that the valve is strong and durable, even in terrible industrial environments can be stable operation.
3. Energy efficient:The triple offset design makes the valve have small resistance and fast flow rate when the fluid passes through, effectively reducing energy consumption and improving work efficiency.
The wide range of application scenarios meets the diversified needs of fluid control.
1. Triple offset metal butterfly valves are used in petroleum, chemical, electric power, metallurgy, water treatment and other industries, whether it’s high temperature, high pressure, corrosion and other terrible environment, or the requirement for frequent switching condition, triple offset metal butterfly valve can take it easy.
Quality assurance, Trustworthy
As a professional enterprise engaged in the development, production and sales of fluid control equipment, we rely on many years of industry experience and strong technical strength, provide customers with quality products and services, while our products have also been praised by the majority of users, thanks to we has a professional R & D team and production team, Continuous introduction of advanced production technology and equipment continuously to ensure the stability and reliability of product quality, we always adhere to strict quality control standards.
From the selection of raw material to every part of the production process is controlled strictly. Meantime, we provide good after-sales service, from product installation, commissioning to daily maintenance, troubleshooting, we will provide you with professional technical support and solutions to ensure that you get a full range of support in the use process.
