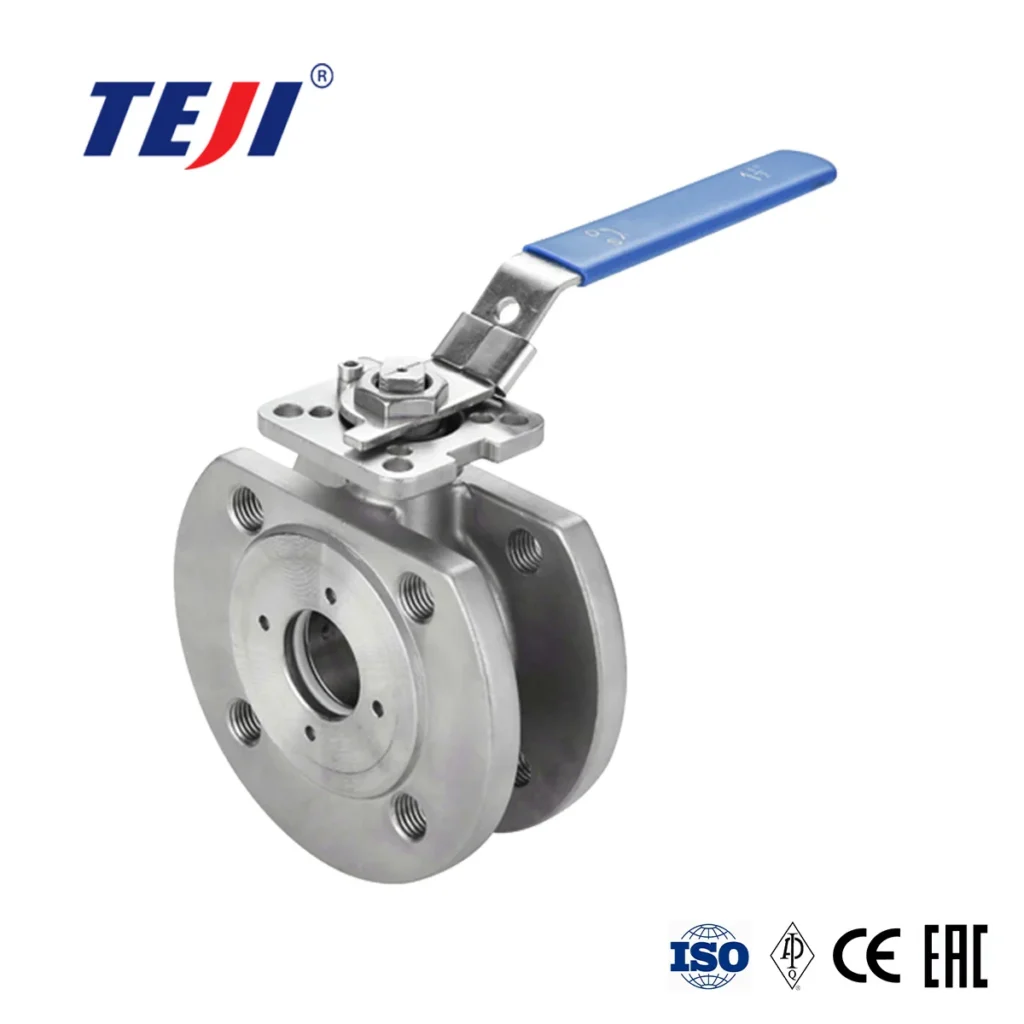

The wafer ball valve is ideally suited to applications where space is at a premium. Wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged body, full and reduced bore configurations, although intended for manual operation, actuation can be accommodated on certain sizes.
Categories: Ball Valves, Floating Ball Valve
PRODUCTS FEATURE:
Wafer Valve Body, Short Face-to-Face Dimensions
One Piece Body, Floating Ball type
Full Port or Reduced Port
Fire Safe to API 607
Anti -Static Design
Anti-Blowout Stem
Lever, Gear Operation or Actuator Available
Structure Features
Product Parameter
APPLICABLE STANDARD:
a) Design & Manufacture: API 6D, BS 5351, ASME B16.34
b) Face to Face: Manufacturer’s Standard
c) End Connection: ASME B16.5, EN 1092, JIS B2220
d) Test and Inspection: API 6D, EN 12266, API 598
Sizes: 1/2″ – 10″ ,DN 15 – DN 250
Pressure Rating: Class150 – Class 600 or PN 16 – PN 100
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L etc.
Operated by: Lever, Gear, Pneumatic, hydraulic and Electric actuator
